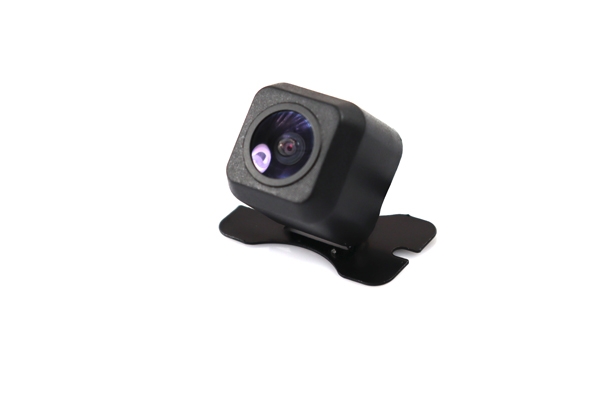

Bumper Universal Reverse Camera-Adjustable Mount
This compact universal camera makes installing a back up system to a breeze with our super thin power/video cable and connection plug allowing the cable to be passed through small holes making having to drill large holes in vehicles a thing of the past.
This fully adjustable camera makes it easy to select the viewing angle and/or required target (such as tow bars) compared to fixed angle cameras. The selectable Mirror and Parking grid options also make this a very versatile camera for any application.
|
Camera Specification |
|
|
Image Sensor |
1/3 inch Colorful CMOS |
|
Resolution(TV line) |
600 TV lines |
|
Effective pixels |
NTSC/PAL: 728(H) x 488(V) |
|
Viewing angle |
Horizontal (130°) ; Vertical ( 110° ) |
|
TV System |
PAL or NTSC option |
|
Waterproof rating |
IP67 |
|
Min illumination |
0.1 Lux |
|
Electronic Shutter |
1-1/10000 seconds |
|
Current consumption |
Max.100mA |
|
Video output |
1.0vp-p, 75ohm |
|
S/N Ratio |
Better than 48db( AGC-OFF) |
|
Power voltage |
DC 12 V |
|
Camera connector type |
RCA or Mini-Din |
|
Keyhole size |
N/A |
|
Operating temperature |
-20℃~70℃,RH95% MAX |
